Fill Out Your LADBS NEC Standard Electrical Load Calculation Form

Steps to Using LADBS NEC Standard Electrical Load Calculation

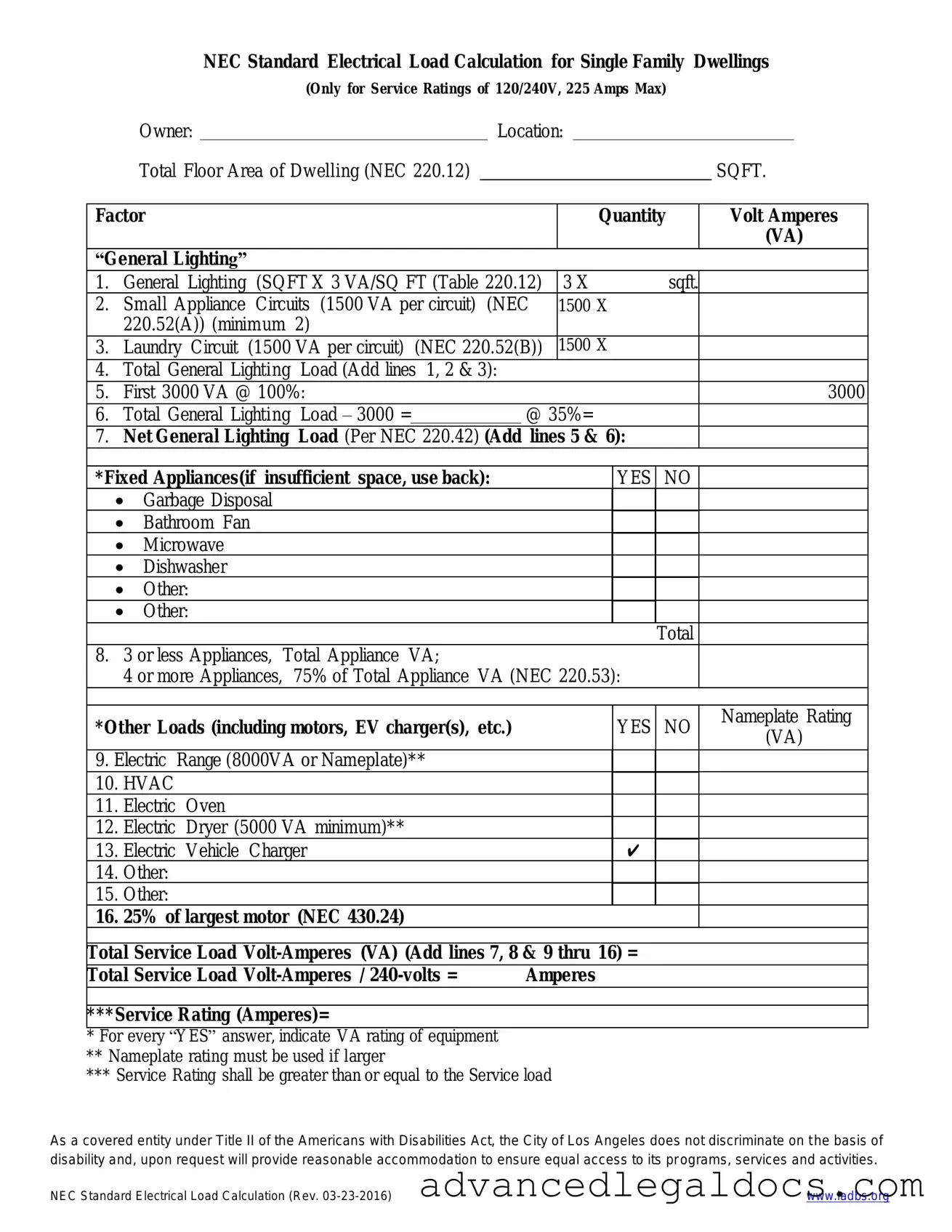

Filling out the LADBS NEC Standard Electrical Load Calculation form is an essential step in ensuring your building's electrical system is appropriately sized to handle its expected electrical load. This calculation is crucial for both new constructions and renovations where electrical systems might be altered. The process involves a detailed assessment of the building's electrical usage, including both the general lighting requirements and any specific appliances or systems that will draw power. Proper completion of this form helps in avoiding potential electrical system overloads and ensures compliance with building codes. The following steps guide you through the process of filling out the form accurately.

1. Start by gathering the necessary information about your building's electrical needs, including square footage, types of appliances, and specific power requirements for any specialized equipment.
2. Enter the building's total square footage in the section labeled 'General Lighting Load.' This area calculates the basic lighting needs of the space.
3. Calculate and list the power requirements of all general-use receptacles. This section accounts for outlets not dedicated to specific appliances or equipment.
4. For the 'Appliance Load' section, itemize each significant appliance, such as refrigerators, dishwashers, and washing machines, along with their individual electrical demands.
5. In the area reserved for 'Heating and Air Conditioning,' document the power consumption for your HVAC system. If the property uses different systems for heating and cooling, ensure to list them separately along with their respective electrical loads.
6. Add the electrical requirements for any additional systems such as water heaters, pumps, or specialized equipment in the 'Special Loads' section. Each item should be clearly identified along with its power demand.
7. Review the entire form to ensure all necessary sections are completed and that the information provided is accurate and reflective of the building’s electrical load.
8. Finally, sign and date the form in the designated area, attesting to the accuracy of the information provided. If applicable, have a licensed electrician or engineer review and cosign the document.

Upon completion, the LADBS NEC Standard Electrical Load Calculation form will serve as a critical document in the planning and approval process of your construction or renovation project. It is advisable to keep a copy for your records and submit the original to the appropriate regulatory body as part of your project's documentation package. Accurate and thorough completion of this form is essential for ensuring the electrical safety and code compliance of your property.

1. What is the LADBS NEC Standard Electrical Load Calculation form?

   The LADBS NEC Standard Electrical Load Calculation form is a document used in Los Angeles to help contractors, electricians, and homeowners determine the electrical load of a building or structure according to the National Electrical Code (NEC) standards. This form ensures that the electrical system is appropriately sized to handle the expected electrical demand safely and efficiently.

2. Who needs to fill out this form?

   Anyone planning new construction, renovations, or electrical upgrades within the Los Angeles Department of Building and Safety's jurisdiction should use this form. It is particularly important for licensed electrical contractors and engineers working on residential, commercial, or industrial projects.

3. How is the electrical load calculated?

   The electrical load calculation involves adding up the power requirements of all electrical devices and systems in a building to determine the total electrical demand. Specific formulas and guidelines from the NEC are used to accurately calculate loads for lighting, heating, appliances, and motors. The form may also take into consideration factors such as square footage and use classification to ensure all potential electrical loads are accounted for.

4. What are the benefits of using the LADBS NEC Standard Electrical Load Calculation form?

   • Ensures compliance with the National Electrical Code for safety.
   • Helps in designing an electrical system that adequately meets the current and future needs of a building.
   • Reduces the risk of electrical overloads, which can cause fires or damage to electrical devices.
   • Facilitates the approval process for electrical work by providing a standardized calculation tool.

5. Where can I find the form and additional guidance on how to complete it?

   The LADBS NEC Standard Electrical Load Calculation form can be obtained from the Los Angeles Department of Building and Safety (LADBS) website or at their physical offices. Their website also offers guidelines and resources to assist in accurately completing the form. For specific questions or more detailed assistance, it's recommended to contact LADBS directly or consult with a licensed electrician or electrical engineer familiar with local codes and requirements.

When filling out the LADBS (Los Angeles Department of Building and Safety) NEC (National Electrical Code) Standard Electrical Load Calculation form, people often make several mistakes. Being aware of these can help ensure that the form is completed accurately, which is crucial for the safety and efficiency of electrical installations.

1. Not checking the latest form version - Sometimes, people use outdated forms without realizing that the LADBS updates the NEC Standard Electrical Load Calculation form periodically. Using the latest version is essential for compliance with the most current codes and regulations.

2. Incorrectly calculating square footage - An accurate calculation of the total square footage, including all living spaces that require electrical services, is crucial. Errors in this area can lead to underestimating or overestimating the electrical load, both of which can pose various problems.

3. Omitting certain types of loads - It's common to overlook or misunderstand the types of loads that need to be included, such as fixed appliances, motor loads, or heating and air conditioning units. Each type of load must be accurately calculated and reported to ensure the electrical system can handle the demand.

4. Failing to double-check calculations - Mistakes in arithmetic or transferring numbers from calculations to the form are easy to make but also easy to overlook. Double-checking all numbers and calculations can prevent costly or dangerous errors in the electrical design.

By avoiding these common mistakes, individuals can submit a more accurate and compliant electrical load calculation, aiding in the efficient and safe design and installation of electrical systems in buildings.

When working with electrical projects, especially those requiring approval from the Los Angeles Department of Building and Safety (LADBS), one critical document is the NEC Standard Electrical Load Calculation form. This form is essential for planning and ensuring that electrical systems are designed with safety and compliance in mind. Alongside this pivotal document, several other forms and documents often come into play to provide a comprehensive overview and ensure the project meets all required standards and regulations.

• Building Permit Application: This document is the starting point for any construction or remodeling project requiring electrical work. It officially registers your project with the local government, ensuring that all work is done legally and up to code.
• Electrical Permit: Specifically focused on the electrical aspect of the work, this permit is necessary for any new installations, alterations, or repairs of electrical systems.
• Panel Schedule: A detailed diagram showing how circuit breakers are organized in the panel and their corresponding loads. It's crucial for understanding the distribution of electricity throughout the property.
• Wiring Diagram: Presents the layout of all the electrical wiring for a project, including the placement of devices, lights, and outlets. This visual representation ensures proper installation and functionality.
• Load Calculation Worksheet: A supplemental form to the NEC Standard Electrical Load Calculation, providing detailed calculations of individual loads. This helps in determining the proper size for service and feeders required for the electrical installation.
• Inspection Report: This document is issued after the electrical work has been inspected by a city or county inspector, indicating whether the project meets all the applicable codes and standards.
• Material List: Details all the materials used in the electrical installation, from wiring and conduits to outlets and switches. It's essential for quality control and ensuring all components meet specific standards.
• Energy Compliance Forms: Required for new constructions, these forms demonstrate that the electrical installations comply with specific energy efficiency standards set by the state or local authorities.
• Proof of Workers' Compensation Insurance: While not a technical document, this is crucial for projects involving hired contractors, ensuring that all workers are covered in case of injury during the project.

Navigating a construction or renovation project involves handling a broad spectrum of documentation, each serving a specific purpose in the overarching goal of compliance, safety, and efficiency. From the initial application to the final inspection, these documents work in tandem with the NEC Standard Electrical Load Calculation form to pave the way for successful project completion, ensuring all electrical work is up to standard and fully operational.

The Residential Load Calculation Worksheet, often utilized within the scope of residential electrical planning, mirrors the LADBS NEC Standard Electrical Load Calculation form in several respects. Primarily, it serves to compute the electrical load requirements for a household, ensuring compatibility with the National Electrical Code (NEC) requirements. Just as the LADBS form, it requires detailed input on various home appliances, heating and cooling systems, and other electrical consumption data to accurately forecast the electrical demand.

A Commercial Electrical Load Calculation form, used for business premises instead of residential spaces, shares a fundamental structure with the LADBS NEC form. Despite focusing on commercial settings—like offices, restaurants, or retail stores—it similarly mandates a comprehensive inventory of electrical equipment and usage patterns to establish the necessary electrical service load. This ensures the building's electrical system is designed to handle its anticipated electrical consumption securely and efficiently.

The Electrical Panel Load Calculation Spreadsheet is an electronic tool designed to facilitate the estimation of the total electrical load on a panel. Comparable to the LADBS NEC Standard Electrical Load Calculation, this spreadsheet aids in ensuring that electrical panels are neither overloaded nor underutilized, promoting optimal electrical efficiency and safety in compliance with the NEC guidelines.

The HVAC Load Calculation Form, albeit more specialized, parallels the process of the LADBS NEC form by focusing on heating, ventilation, and air conditioning systems' electrical demands. This document scrutinizes the specific requirements of HVAC systems within a residential or commercial building, accounting for factors like square footage, climate, and building materials to determine the necessary electrical support for HVAC systems.

A Generator Sizing Calculator, while quite specific in its application, shares the purpose of ensuring that electrical systems are adequately planned to meet load demands. Like the LADBS NEC form, it uses detailed information about a property's electrical consumption to recommend the appropriate size for a backup generator, ensuring the generator can handle the building's essential load during a power outage.

The Solar Panel Load Calculation Spreadsheet assesses the electrical load for integrating solar panels into existing electrical systems. This document mirrors the LADBS form in its goal to ensure that the new solar energy system is appropriately sized to meet the energy needs of the property, based on its calculated electrical load. It factors in various considerations including peak sunlight hours and expected energy consumption.

An Energy Consumption Audit Form, used for identifying opportunities to reduce energy usage and costs in a building, similarly requires the aggregation and analysis of electrical load information across different systems and appliances. Much like the LADBS NEC form, this document is crucial for understanding the overall energy demands of a property and forms the basis for implementing efficiency measures and sustainability practices.

The Electrical Service Upgrade Application is another document closely aligned with the LADBS NEC Standard Electrical Load Calculation form. It is used when a property owner seeks to increase the electrical capacity of their existing service panel to accommodate additional load demands. This process necessitates a precise calculation of current and anticipated electrical needs, ensuring that the upgrade aligns with safe and sufficient power supply standards.

Last, the Electrical Inspection Checklist, while broader in its scope, incorporates elements related to verifying that electrical installations and modifications meet the required electrical load calculations and adhere to safety standards. It ensures that all electrical work, from panel upgrades to system extensions, is conducted within the parameters that the LADBS NEC form helps to establish, thus maintaining compliance with the NEC and promoting electrical safety.

When filling out the LADBS NEC Standard Electrical Load Calculation form, it's important to approach the task with attention to detail and accuracy. To help, here are five things you should do, as well as five things you shouldn't do to ensure the process is completed efficiently and correctly.

Things You Should Do

1. Read all instructions carefully before you start. Understanding the requirements upfront can save time and prevent mistakes.
2. Gather all necessary information regarding your electrical systems and appliances. Accurate data ensures that calculations are correct.
3. Use a calculator or digital tool to ensure accuracy of your calculations. Even small errors can lead to significant problems.
4. Double-check your work. Once you’ve completed the form, review every section to confirm that the information is accurate and complete.
5. Consult with a professional if you’re unsure about any part of the form. A licensed electrician or engineer can offer valuable guidance.

Things You Shouldn't Do

1. Rush through the form without understanding each section. Mistakes often happen when people try to complete forms too quickly.
2. Estimate or guess measurements and values. Accuracy is key, and estimates can lead to incorrect load calculations.
3. Ignore the latest codes and standards. Electrical codes can change, so it’s important to use the most current information when completing the form.
4. Forget to sign and date the form. An unsigned form may not be processed, delaying your project.
5. Use outdated forms. Always check that you are using the latest version of the LADBS NEC Standard Electrical Load Calculation form.

When it comes to understanding the LADBS NEC Standard Electrical Load Calculation form, several misconceptions often arise. By clearing up these misunderstandings, individuals and professionals can better navigate the complexities of electrical load calculations with confidence.

• It’s only for electricians. Many believe that this form is strictly for use by electricians. In reality, architects, engineers, and building owners might also use it during the planning and review stages of construction projects to ensure electrical systems are correctly sized and code-compliant.
• It's too complex for non-professionals. Although the form involves technical terms and calculations, with the right guidance or educational resources, even those without a professional background in electrical work can understand the basics of what is required and why.
• Any version of the form will work. The LADBS updates its forms and requirements periodically to reflect current codes and standards. Using the most up-to-date form is crucial for compliance and to prevent project delays.
• It's only applicable within the City of Los Angeles. While designed by the Los Angeles Department of Building and Safety, the principles and calculations found in the form align with the National Electrical Code (NEC), making it a useful reference in other jurisdictions that follow the NEC.
• Manual calculations are just as good. While it’s possible to perform these calculations by hand, the form helps standardize the process, reducing the risk of errors. It also facilitates the review process by city officials or other authorities.
• It determines the exact size of all electrical components. The form helps calculate the overall electrical load of a building. However, the sizing of specific components, like wires and breakers, requires additional calculations and considerations.
• Using the form guarantees approval. Completing the form accurately is a critical step towards approval, but it’s one part of a broader review process. Other factors, such as adherence to zoning laws and building codes, also play a significant role in obtaining final approval.
• It’s a one-time requirement. Initially, you might use the form during the planning stages of a project. However, any significant modification or addition to the building that affects the electrical system may require a reassessment and resubmission of the form to reflect the changes accurately.

Understanding these misconceptions can alleviate concerns and confusion surrounding the LADBS NEC Standard Electrical Load Calculation form. By educating oneself about the form’s purpose, requirements, and proper usage, navigating the electrical planning phase of a project can become a more straightforward and compliant process.

When tackling the LADBS (Los Angeles Department of Building and Safety) NEC (National Electrical Code) Standard Electrical Load Calculation form, it's crucial to approach the task with clarity and precision. This form plays a significant role in ensuring that new constructions or renovations comply with safety standards by accurately calculating the electrical load. Below are some key takeaways to help guide you through this process:

• Understand the purpose: Before filling out the form, recognize its importance. This calculation ensures your electrical system can handle the proposed load, which is critical for both safety and functionality.
• Gather necessary information: Preparation is key. Collect all required information such as square footage, appliance lists, and specific electrical requirements ahead of time to streamline the process.
• Be precise with your calculations: Accuracy is non-negotiable. Small errors can lead to significant issues, potentially causing overloads or even hazards. Use a calculator and double-check your work.
• Refer to the NEC guidelines: The NEC sets the standard for safe electrical design, installation, and inspection. Familiarize yourself with its guidelines related to load calculations to ensure compliance.
• Use the instructions: The LADBS provides instructions for filling out the form. Don't overlook this resource as it can clarify expectations and reduce the risk of errors.
• Consult a professional if unsure: If any part of the process is unclear, don't hesitate to consult with an electrical engineer or a certified electrician. It's better to seek guidance than to make an educated guess.
• Keep it legible and complete: Submit a form that is easy to read and fully filled out. Missing or illegible information can delay the process, leading to setbacks in your project timeline.

By carefully following these guidelines, you can navigate the LADBS NEC Standard Electrical Load Calculation form more effectively, ensuring your project proceeds smoothly and safely. Remember, this form isn't just paperwork; it's a critical step in safeguarding your construction’s electrical system.
